Rocker switches are designed to be compatible with various lens options and offer easy mounting. Available with 12V/24V bulbs, LED bulbs, or without a bulb, these rocker switches are suitable for W2X4.6D bulb use. All plastic raw materials used in production are RoHS and Reach certified, and the products are made of flame-retardant materials with high thermal resistance. Providing reliable use in vehicle electrical systems and industrial applications, rocker switches offer long-lasting performance with their durable construction. You can check the rocker switch accessories category for compatible lenses, bulbs, and connectors.

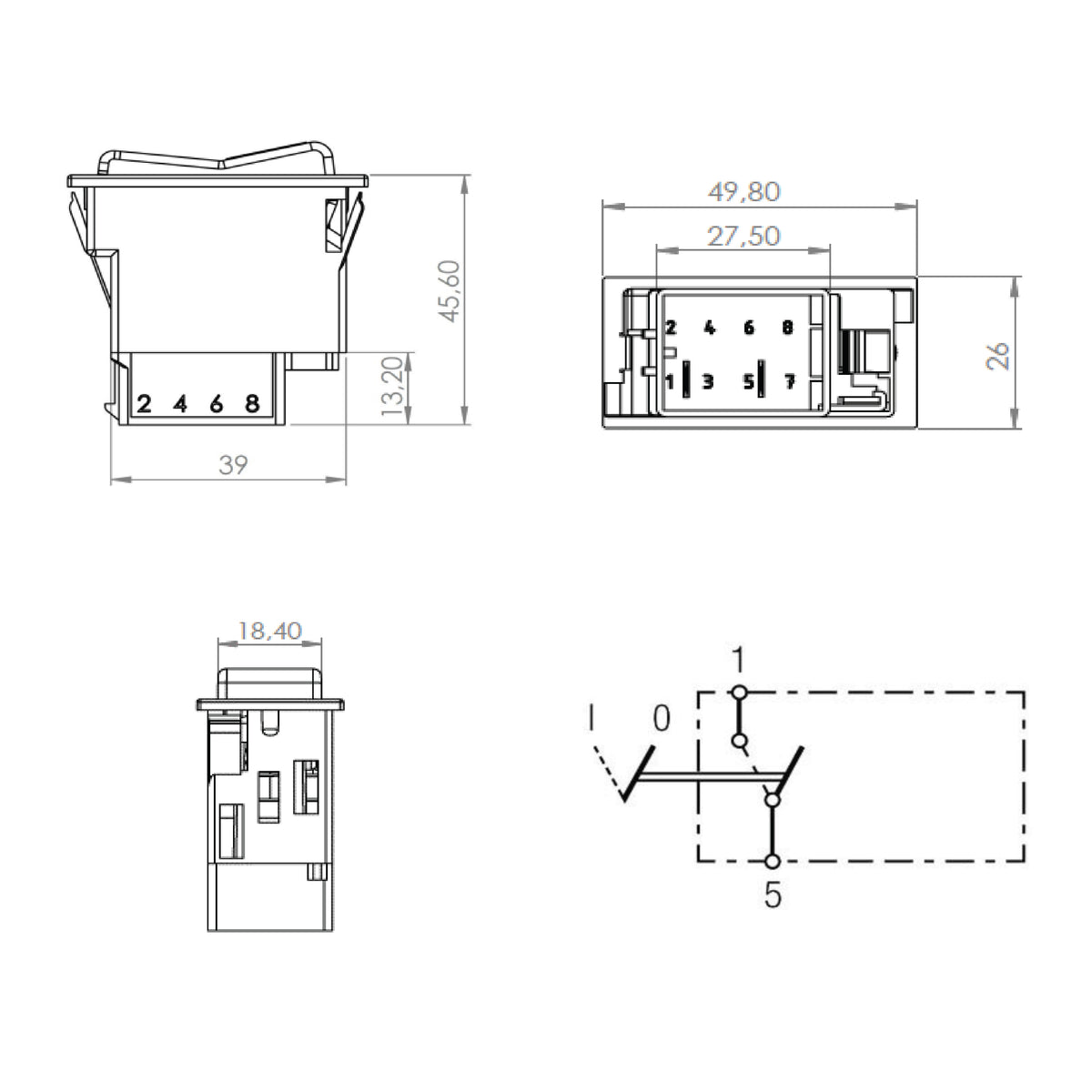

Technical Specifications

-Operating Temperature: -35 ˚C to +65 ˚C
-Operating Voltage: 12 - 24 V
-Operating Amperage: 16 A
-Connector: 2 x 6.3 mm Brass Connector
-Body Material: POM
-Under Body Material: PA6 GF 30%
-Actuator Material: PA6 GF 30%
-Lens Material: Polycarbonate
-Contact Material: Silver
-Ingress Protection: IP53
-Switching: On - Off

Applications

- Panel Groups
- Buses
- Marine
- Commercial Vehicles
- Heavy Trucks
- Agricultural Vehicles

Referance Oem: 245909C1

-Valmet & Valtra: 100, 255, 305, 355, 365, 405, 415, 465, 505, 555, 600, 605, 615, 655, 665, 700, 705, 715, 755, 800, 805, 900, 905.-Mezzo Series: 6000, 6100, 6200, 6250, 6300, 6350, 6400, 6450, 6550, 6600, 6650, 6750, 6800, 6850, 6900.
-Hitech Series: 6650, 6580, 8050, 8150, 8350, 8450, 8950.
-Mega Series: 8000, 8050, 8100, 8150, 8200, 8300, 8350, 8400, 8450, 8550, 8600, 8750, 8950.
-A Series: A75, A85, A95.
-T Series: T120, T130, T140, T150, T160, T170, T180, T190.
