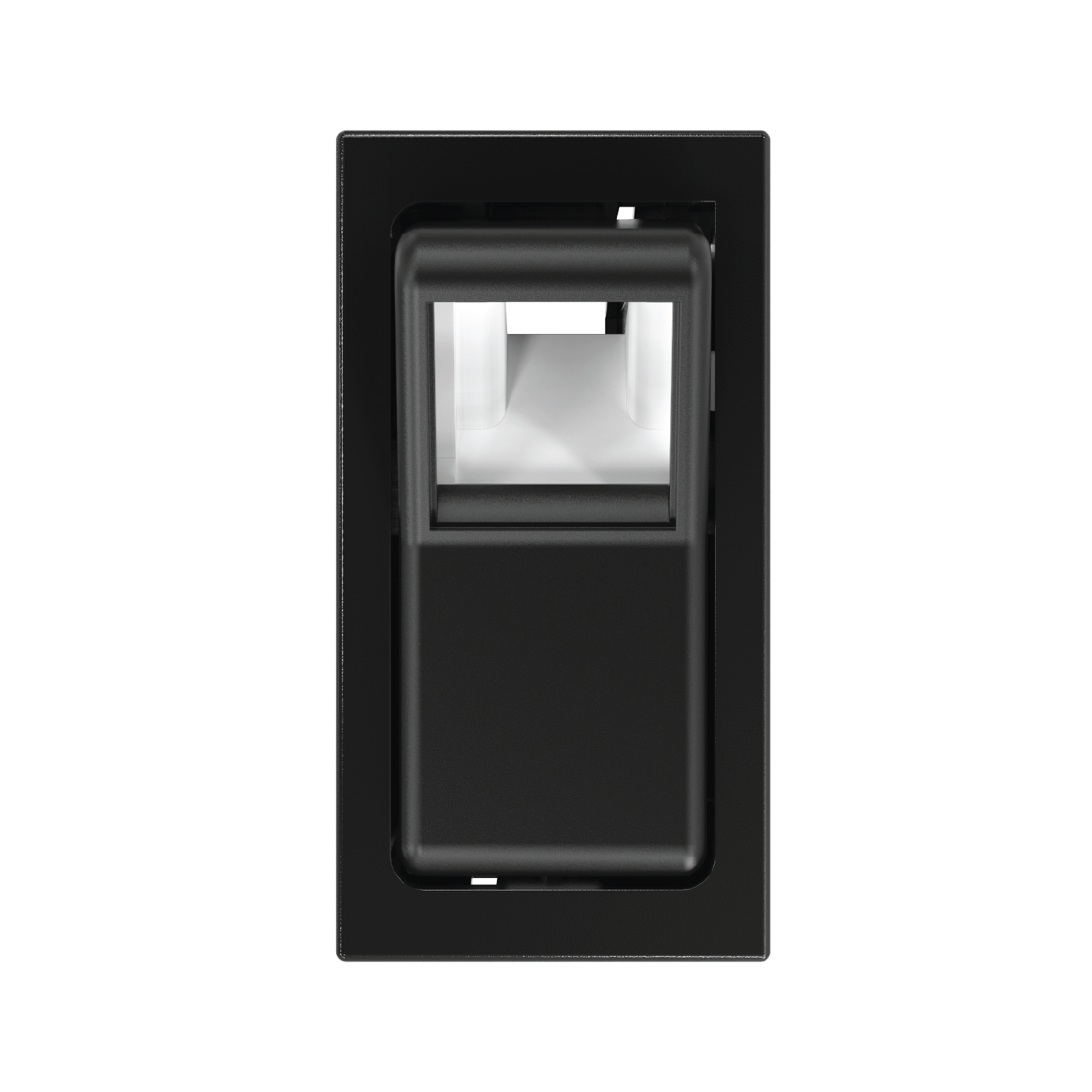

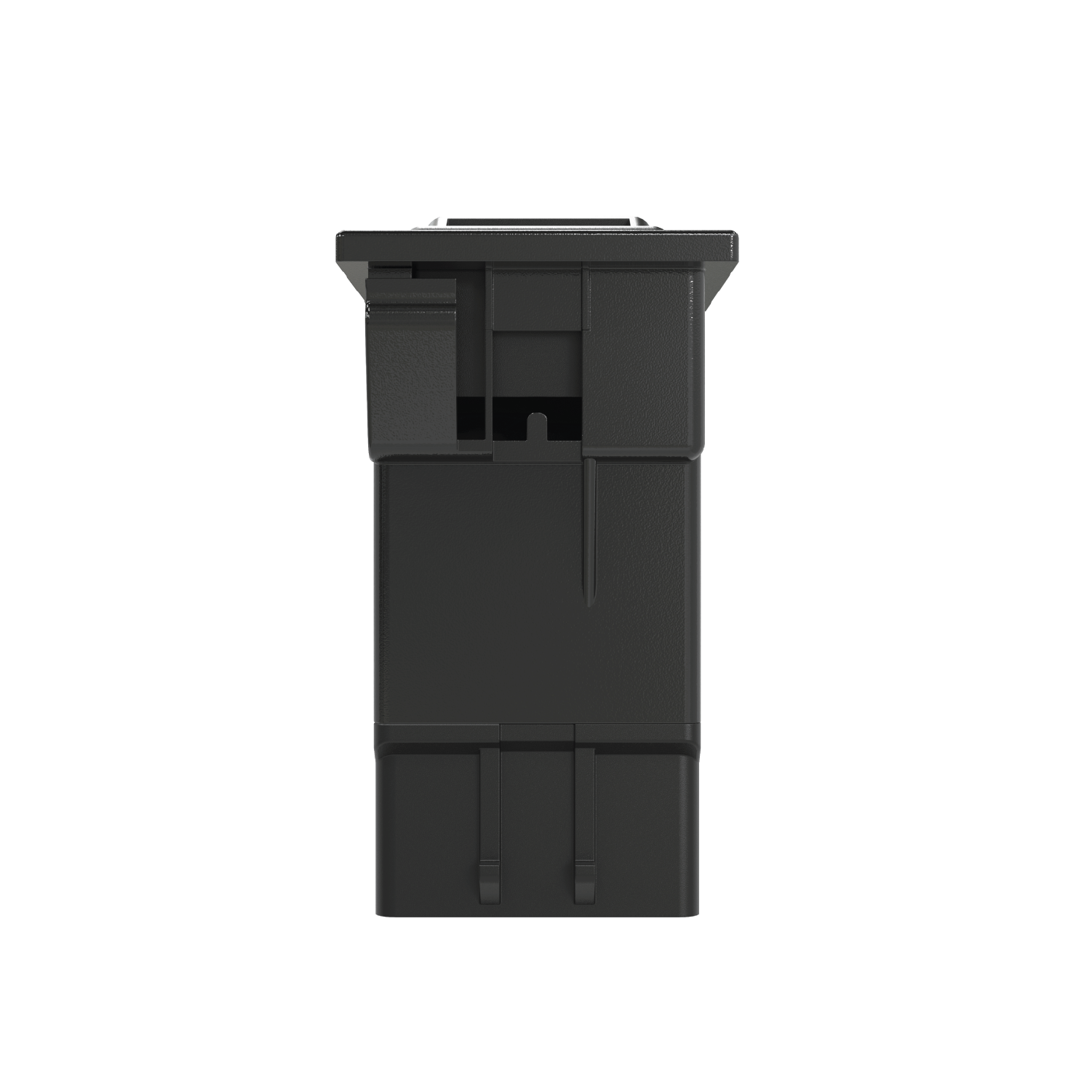

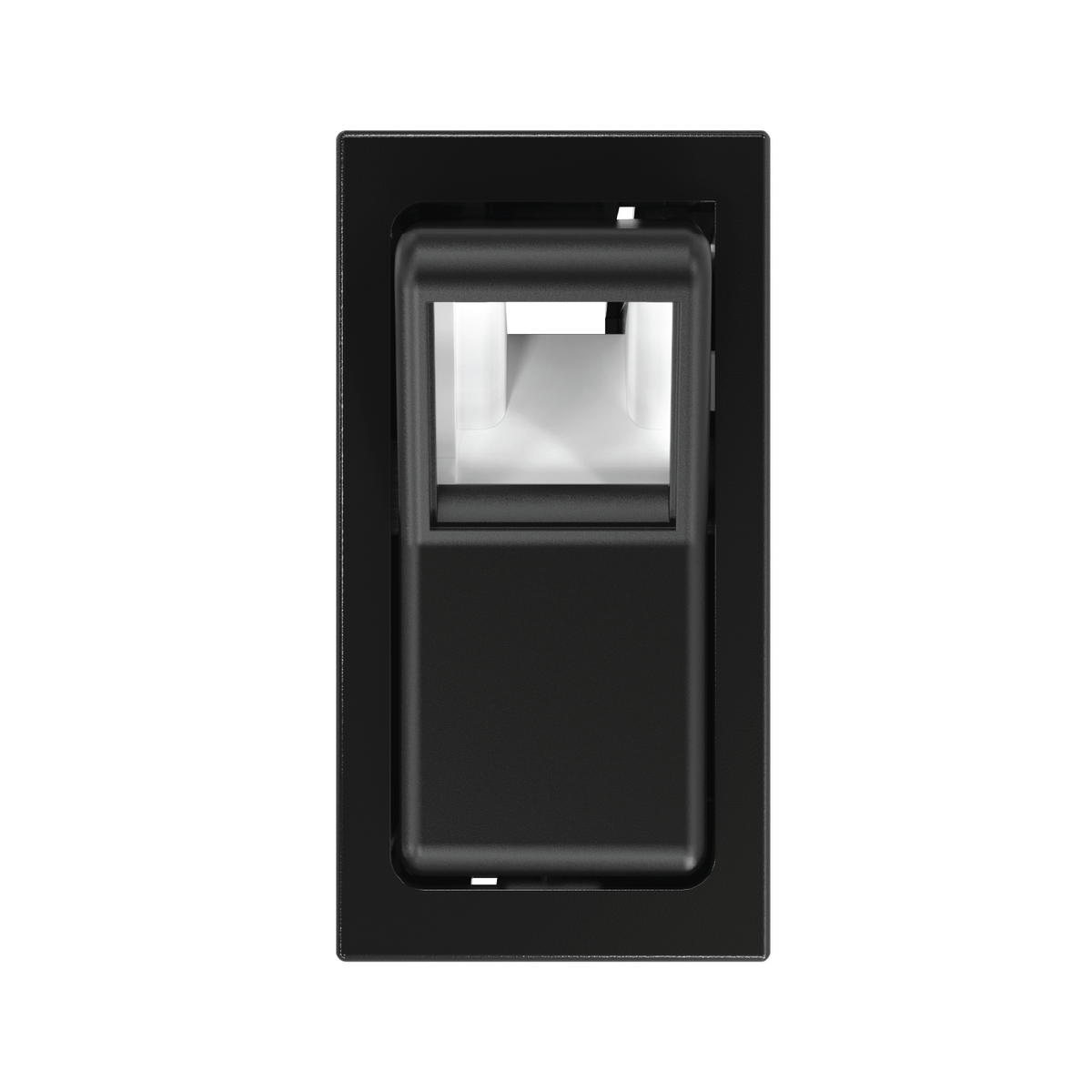

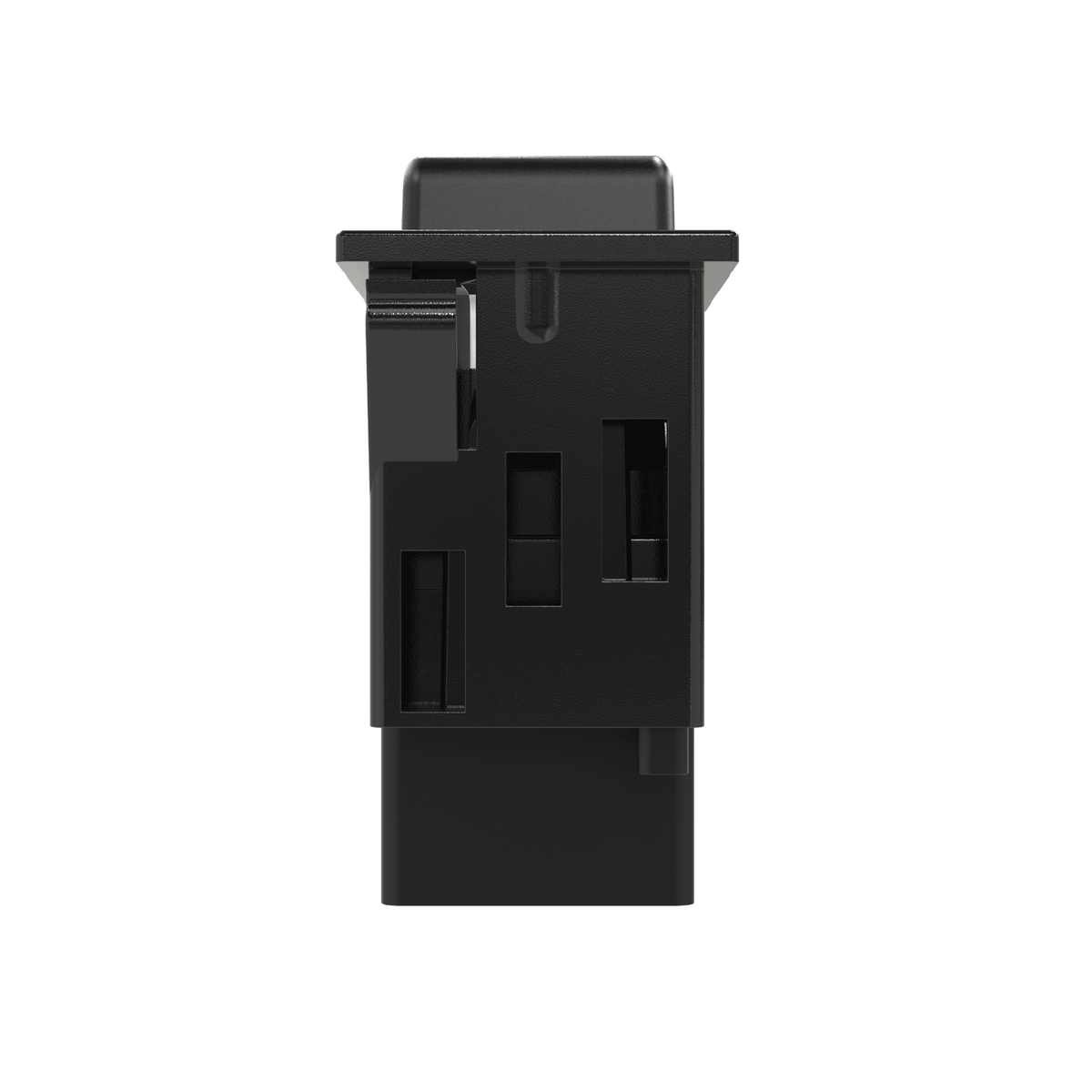

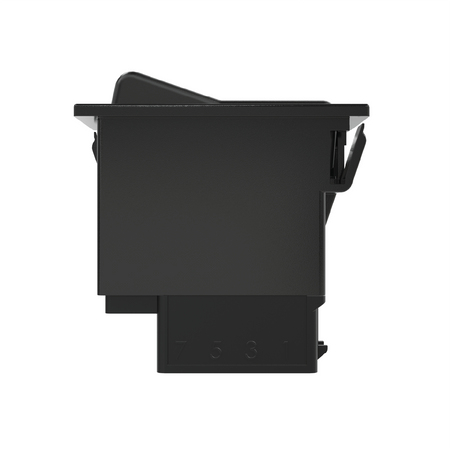

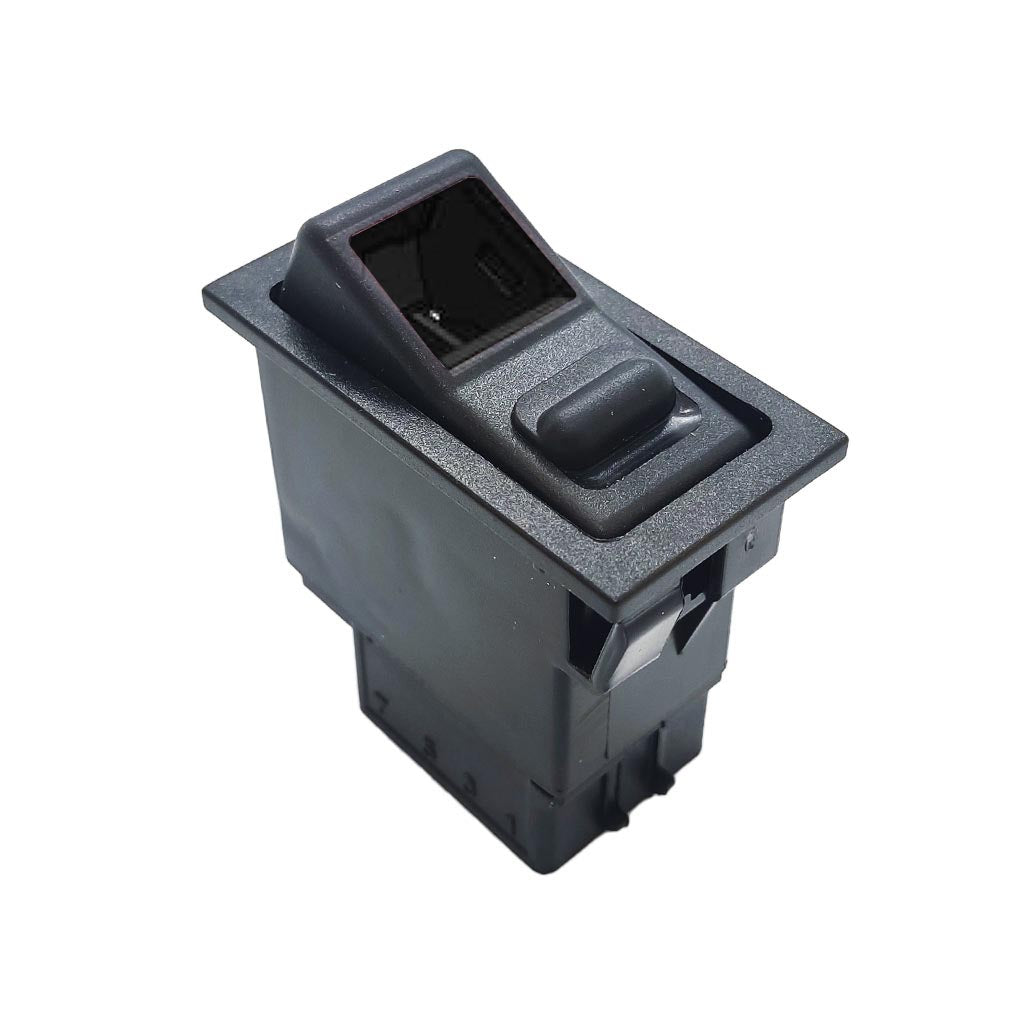

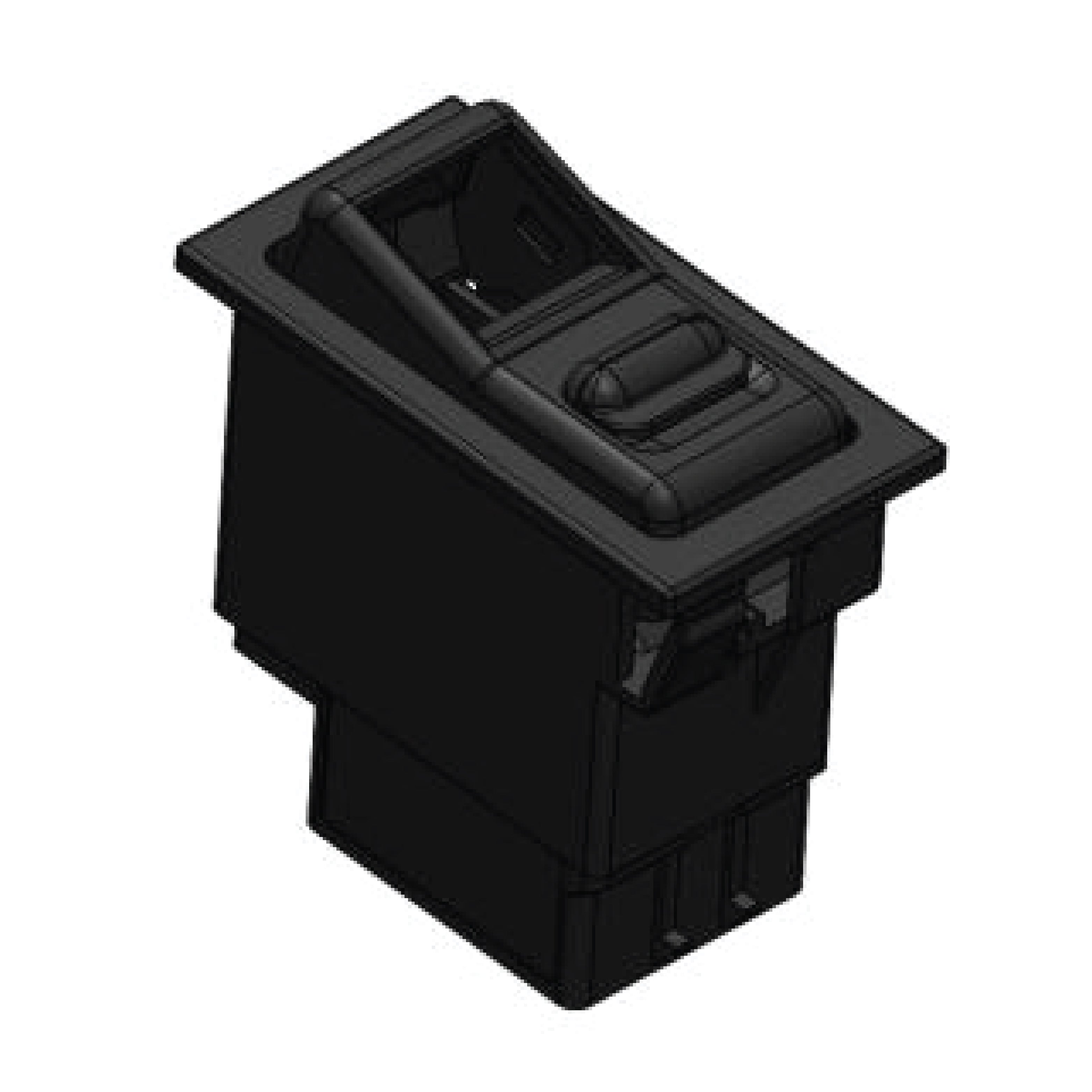

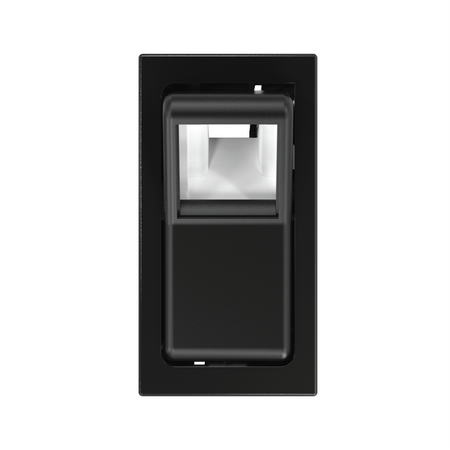

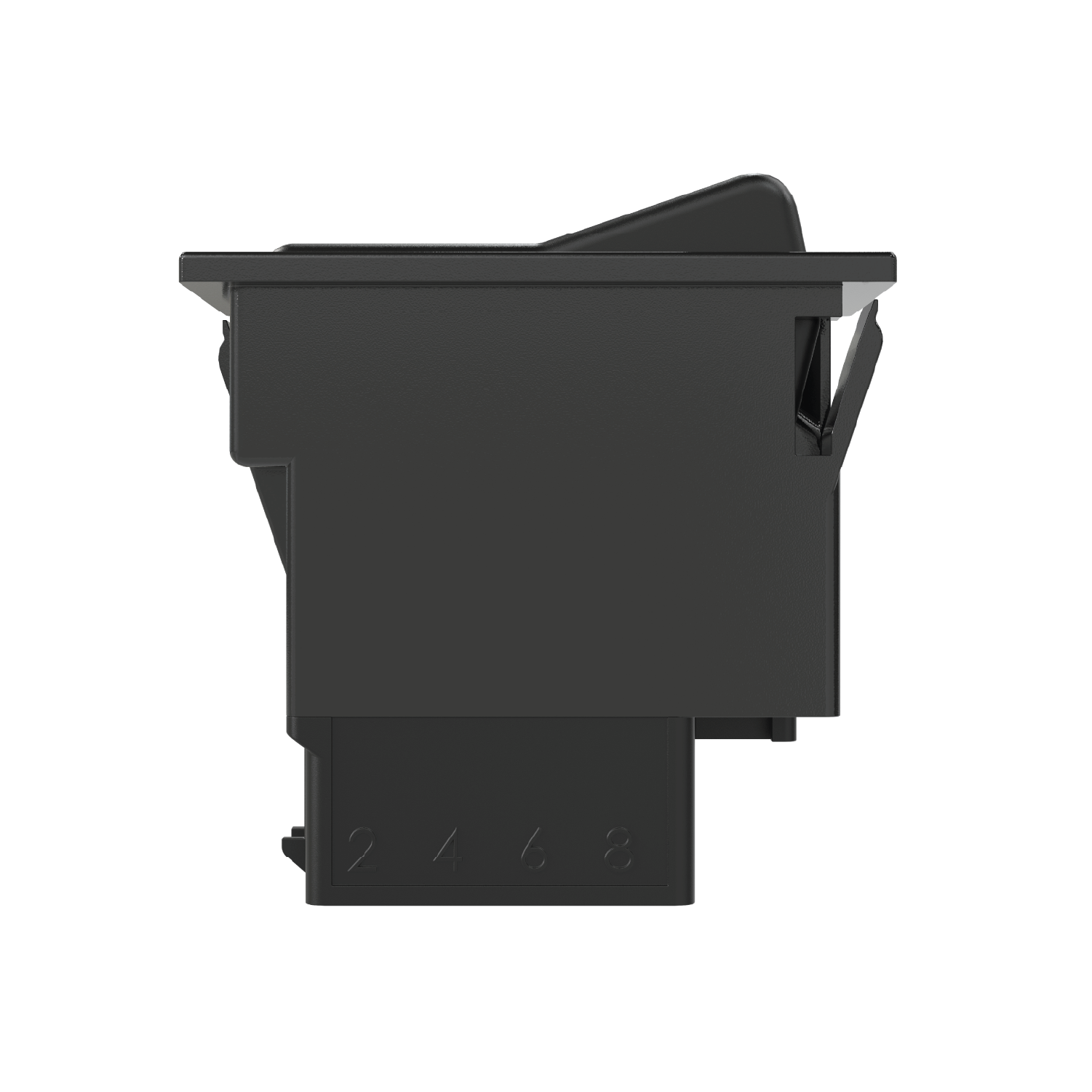

Industrial Heavy-Duty On-Off Rocker Switch – 12V/24V IP53

Enhance your vehicle's control panel with this high-performance, industrial-grade On-Off Rocker Switch. Specifically engineered for demanding environments, this switch combines robust material quality with reliable electrical conductivity, making it an ideal choice for commercial, marine, and agricultural applications.

Key Features

• Built for Durability: Constructed with a high-strength POM body and PA6 GF %30 (Glass Fiber Reinforced) actuator and under-body materials for maximum impact resistance.

• Superior Conductivity: Equipped with Silver contacts and 2x 6.3 mm Brass connectors to ensure low resistance and stable performance.

• Environmental Protection: Rated at IP53 Ingress Protection, offering reliable defense against dust and water splashes.

• Extreme Temperature Resilience: Designed to operate flawlessly in harsh climates, from -35 °C to +65 °C.

• Dual Voltage Compatibility: Optimized for both 12V (16A) and 24V (8A) systems.

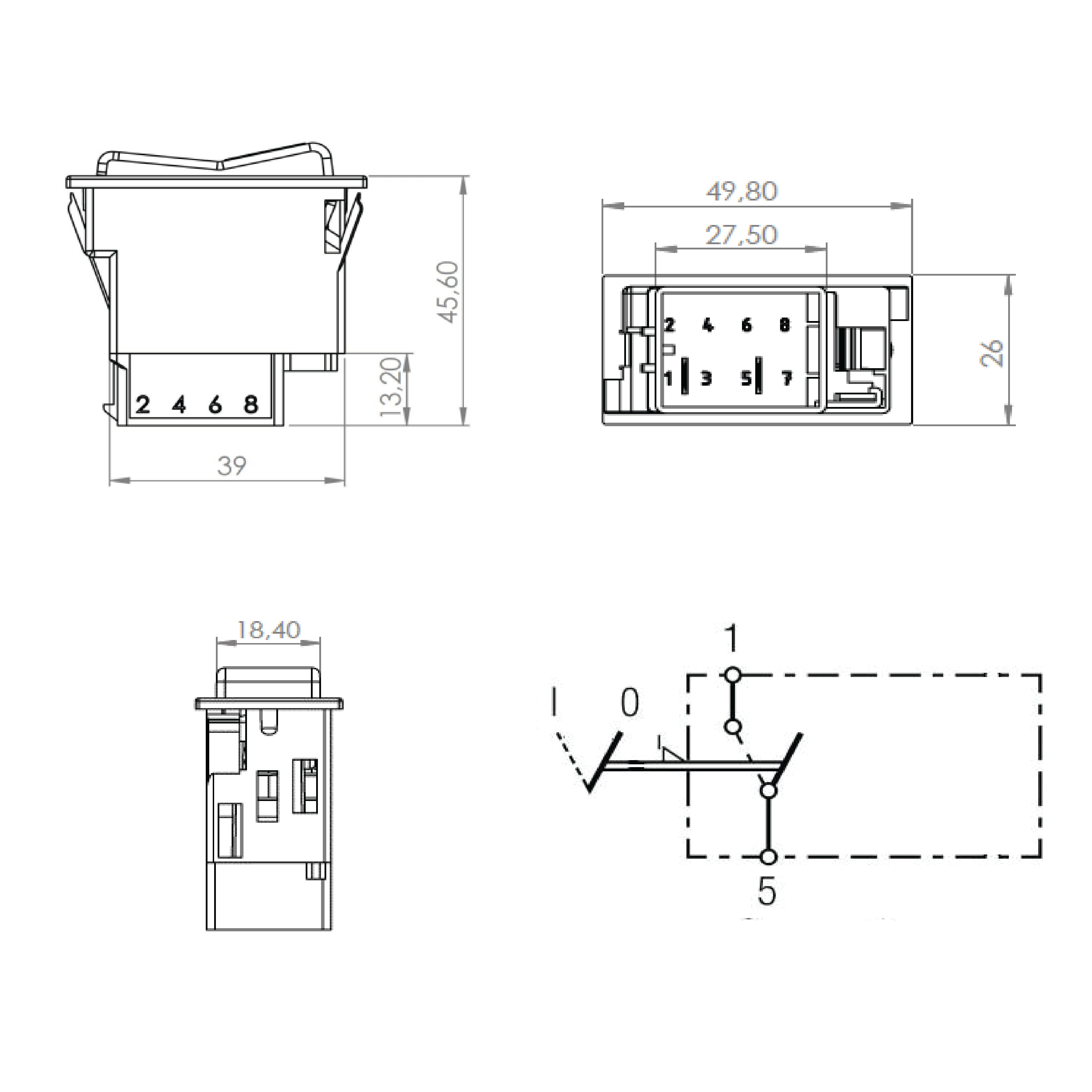

Technical Specifications

• Switching Function: On-Off

• Operating Voltage: 12 - 24 V

• Max. Amperage: 16 A (12V) / 8 A (24V)

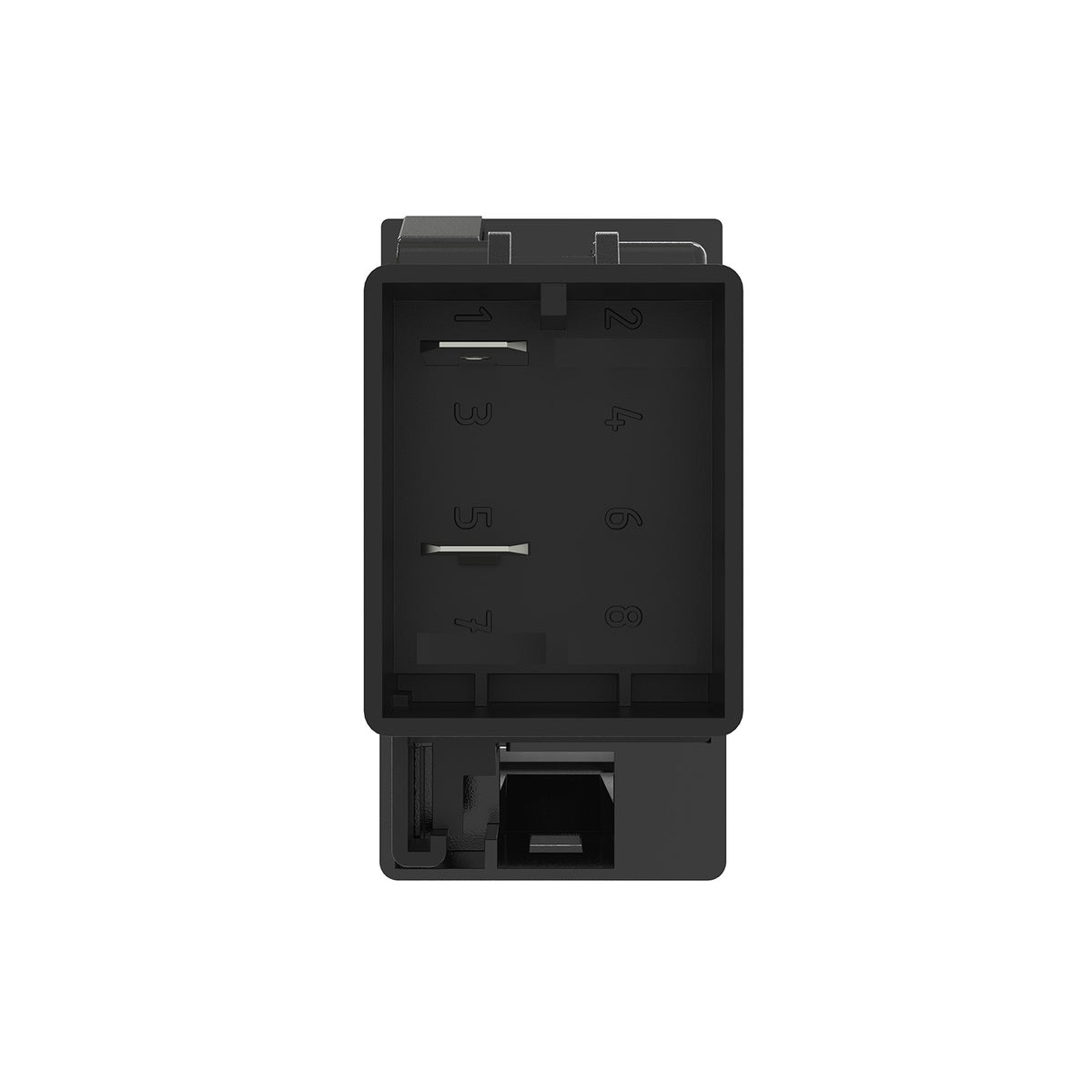

• Connector Type: 2 x 6.3 mm Brass Connectors

• Contact Material: Silver

• Lens Material: Polycarbonate

• Protection Rating: IP53

• Marking: No Marking (Plain Design)

Applications

• Commercial Vehicles: Busses, trucks, and heavy-duty transport.

• Marine Sector: Boat and yacht control panels.

• Agricultural Machinery: Tractors and farming equipment.

• Industrial Panels: Custom panel groups and control units.

Bulbs and lens are not included.
